This kind of installation is suitable for the completed bridge or strict requirements should not be carried out in the body of the abutment for any operation of the bridge, such as
This type of installation is suitable for complete bridges or bridges that strictly require that no operation should be carried out on the body of the abutment, such as railroad bridges. Outsourcing steel plate bottom appropriate to the abutment, on the unprotected parts of the bridge from the
For unprotected parts of the bridge from the abutment, distance is not economical.

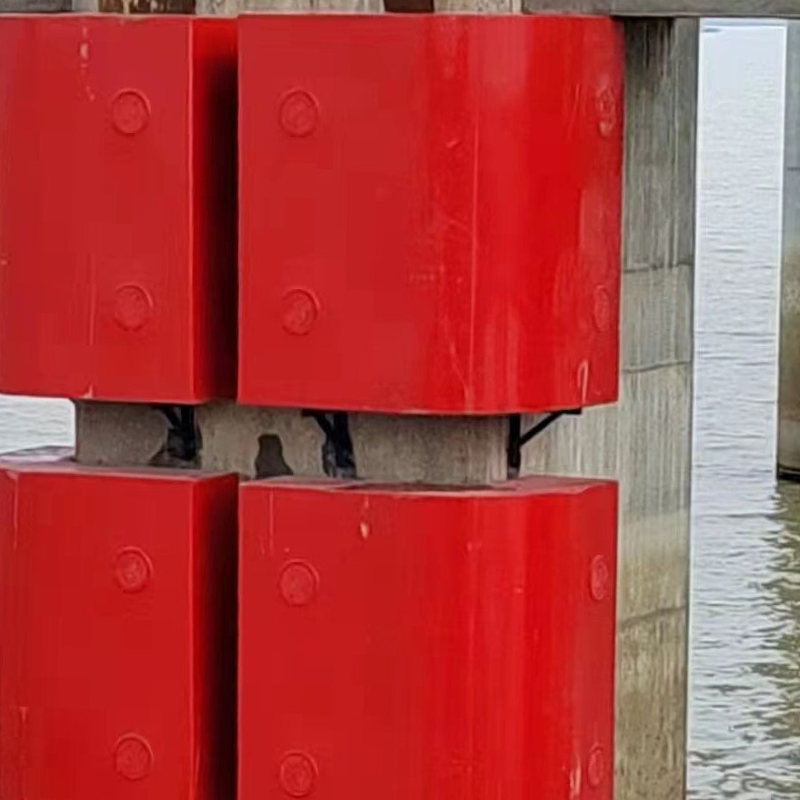

Tie bolt hole fixing steel plate I-applicable to bridge construction is completed after the existence of pier template
Tie holes in the pier, and steel band (steel hoop) rely on fastening screws, fastening screws to take advantage of the original pier body template tensile holes, to avoid punching holes in other parts of the pier body.
Use the original pier body template trolley holes, to avoid punching holes in other parts of the pier body.
This installation method saves steel but affects the aesthetics of the bridge body, the steel belt is exposed, and later maintenance is more
Exposed, later maintenance is also more troublesome.

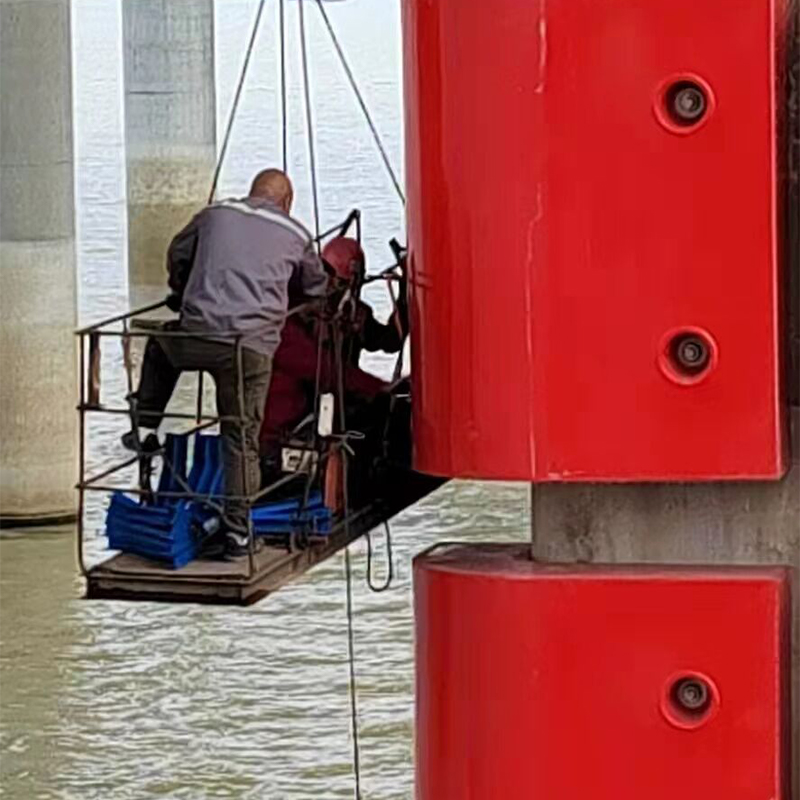

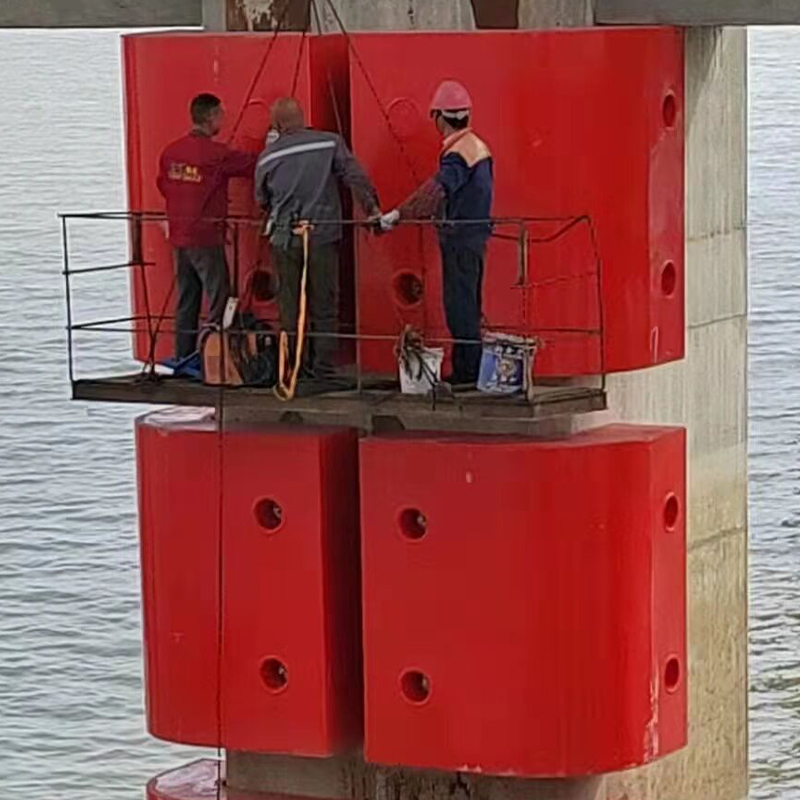

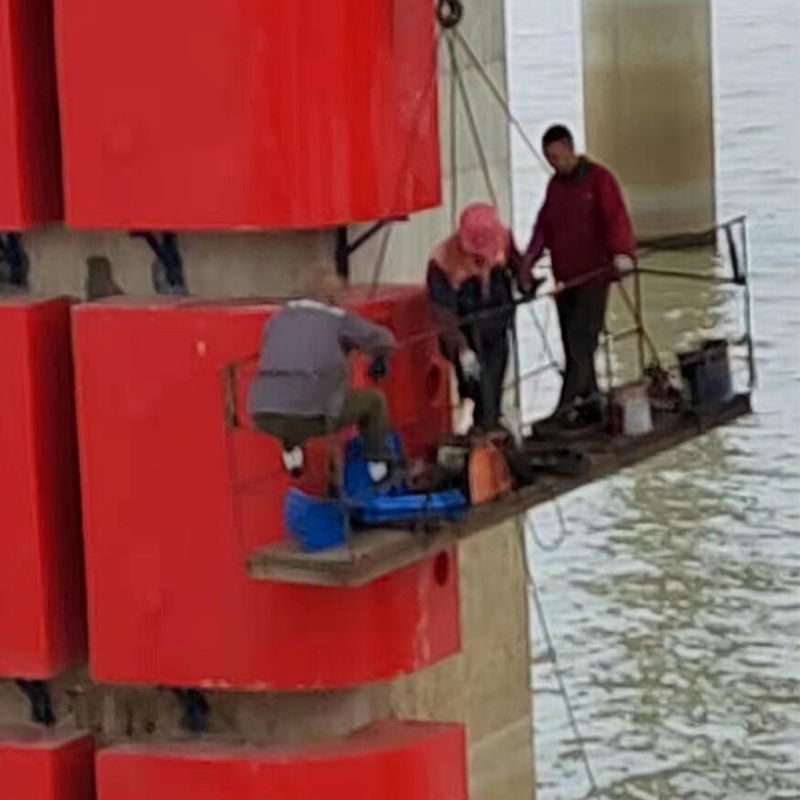

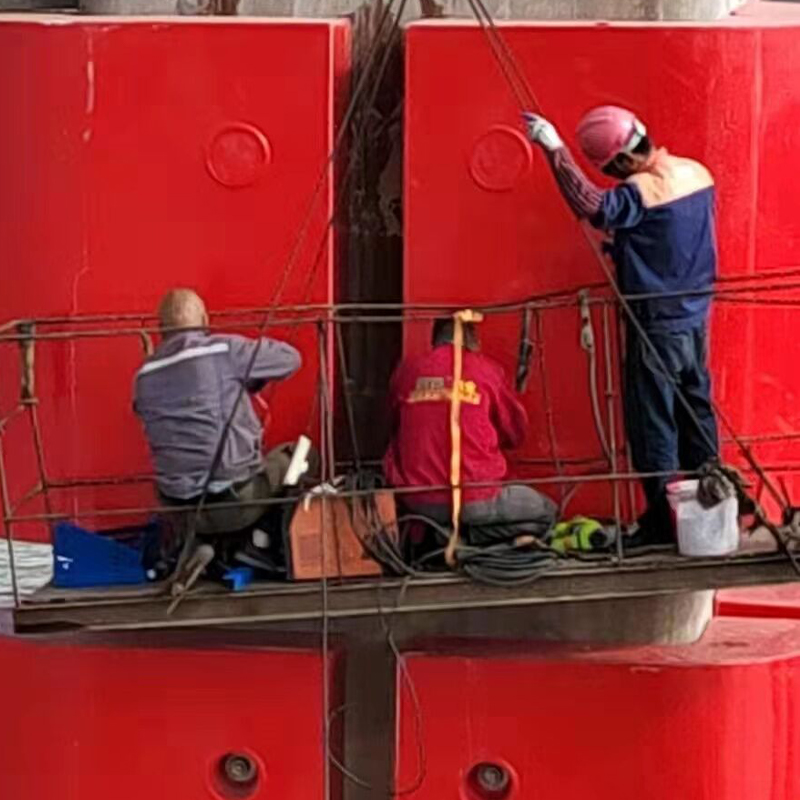

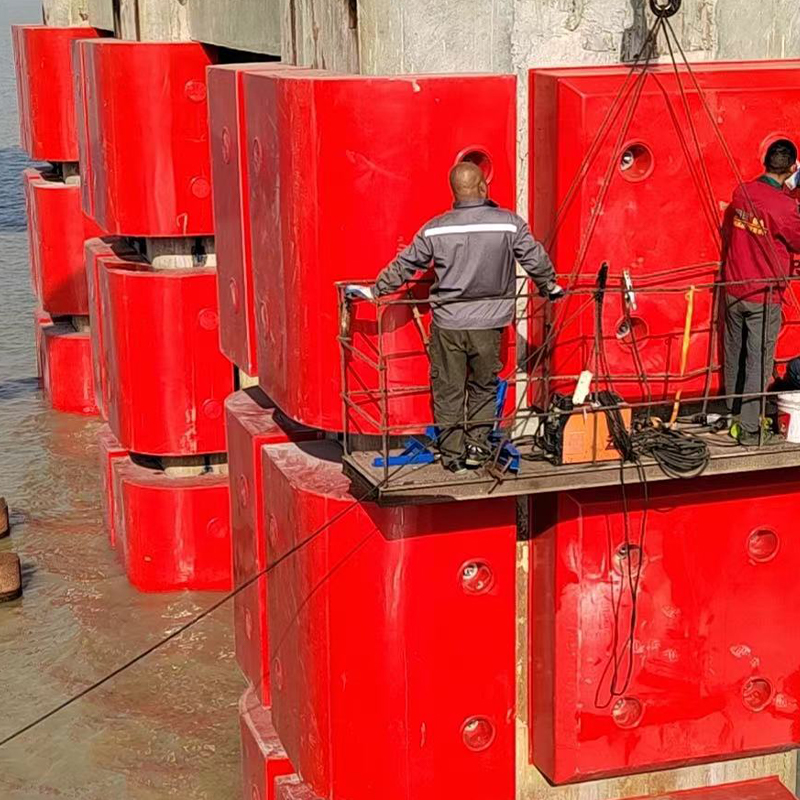

Pre-embedded steel plate
The inner surface of the pre-embedded steel plate is inserted into the steel cage of the abutment by planting reinforcement.
By pouring concrete to make it a whole, the outer surface of the steel plate and the surface of the abutment in a
The outer surface of the steel plate and the surface of the abutment are on a plane, not forming a bulge, which does not affect the aesthetic appearance of the abutment body. Later maintenance and replacement of fenders
and replacement of fenders are only carried out on the surface of the steel plate, and will not affect the structure of the abutment.

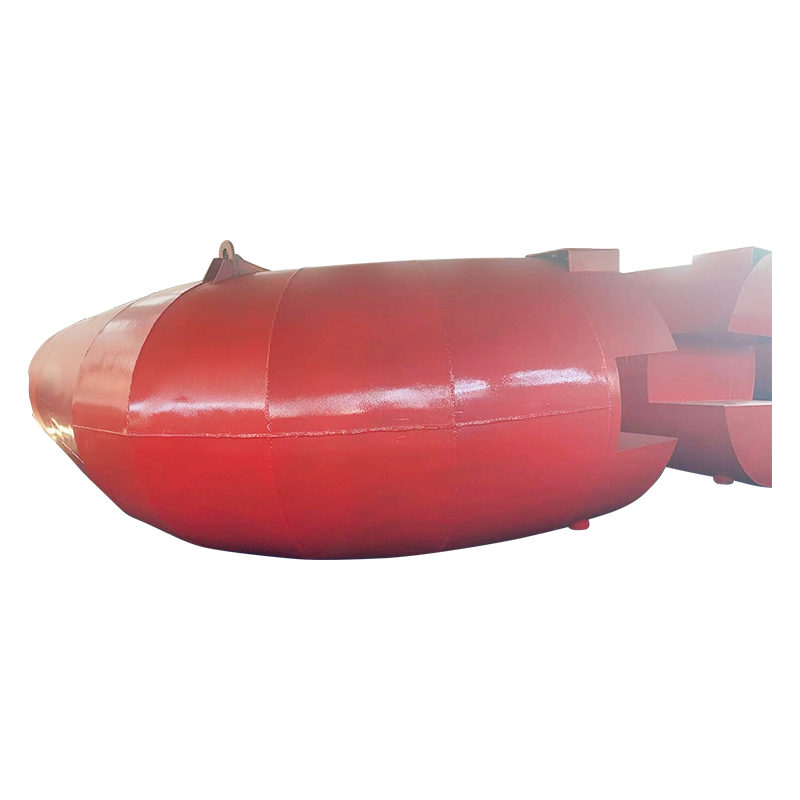

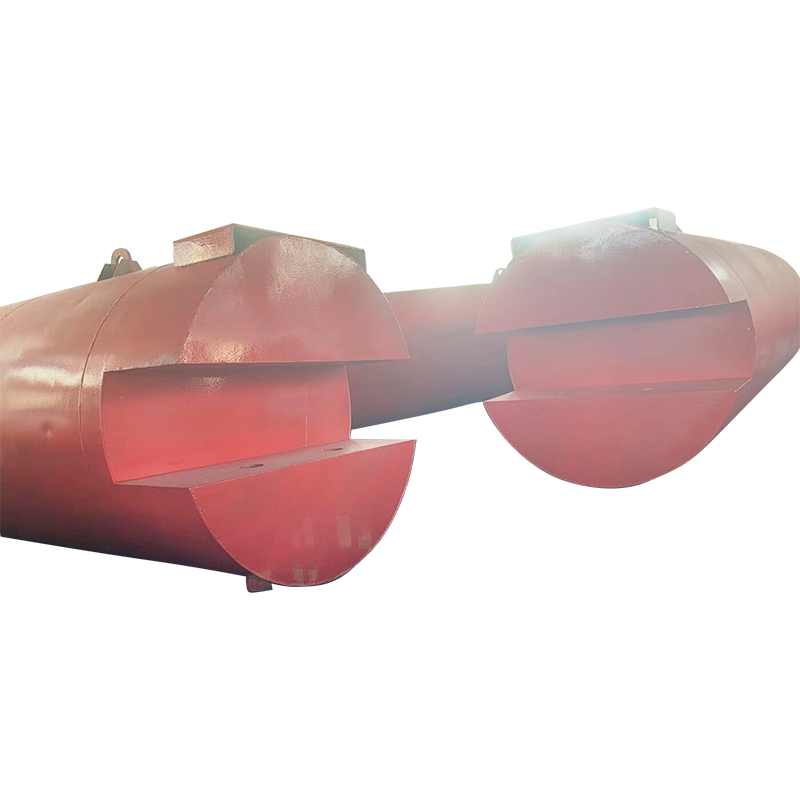

Fixed guarding facilities
Composite material anti-collision facilities have been successfully applied on many large bridges in China. In Anhui Province
In Anhui Province, the application cases are Maanshan Yangtze River Bridge, and Wuxuan Expressway Qingshuihe Bridge, which have stable performance, safe and reliable, with many advantages, mainly including
Stable performance, safety, and reliability, many advantages, mainly include: 1.
1. High efficiency of buffer energy absorption.
2. Strong corrosion resistance, durability, impact resistance, fatigue resistance, excellent performance, and small maintenance costs.
3. Lightweight, easy transportation, install, and replacement.
4. Self-floating, rotatable bow, minimizing damage to the ship.
5. Doesn't take up the net width of the waterway.
6. Beautiful modeling, green environmental protection, smooth and flat appearance.
7 non-metallic materials, anti-theft.
The main body of this collision avoidance facility is a water structure, and the construction process refers to the fiberglass/composite material boat specification.
The construction process refers to the specification of the fiberglass/composite material boat.
1. The corrosion resistance of the composite material should be by the national standard GB/T 3857 "Test Method for Chemical Resistance of Glass Fiber Reinforced Thermosetting Plastics".
Reinforced thermosetting plastics chemical media resistance test method".
2. The water absorption property of composite material shall conform to GB/T 14207-93 national standards "Test Method for Water Absorption of Interlayer Structure or Core".
The water absorption of composite material should be in accordance with GB/T 14207-93 National Standard "Test Method for Water Absorption of Sandwich Structure or Core" to ensure that the water absorption rate is less than 2%.
3. The color of the bumper is suggested to be orange-red (to be selected by the owner), and the outer surface should be coated with reflective paint.
Reflective paint should be applied.
Indicators of steel plate binder
The material of steel plate adhesive is according to the relevant provisions of Technical Specification for Reinforcement of Concrete Structures (CECS 25:90).
The binder used for reinforcement must have high bond strength, good durability, and a certain degree of rationality.
Good, with a certain rationality. Its strength index can be used in accordance with the following table.
| Sports event | Technical indicators | Testing Standards |
| Fiber Reinforced composite material |
①Collision Avoidance System Shell Composite Material Tensile Strength 2300MPa tensile modulus2 20GPa ②Collision avoidance system internal composite material lattice plate tensile Tensile strength 2250MPa, tensile modulus 210GPa (iii) Flexural strength of composite material z 200MPa ④Compression strength of composite material 2 200MPa ⑤ composite material in-plane shear strength2≥50MPa ⑥ Water absorption rate of composite material <3% (vii) No filler shall be added to the resin matrix, and its content shall be 230%. Content 230% ⑧ Shell Barcol hardness 24%. (8) Shell Barcol hardness 245 |
①GB1446 2005 "General Test Methods for Fiber Reinforced Plastics". Repertoire ② GB50608- 2010 "fiber-reinforced composite village materials construction engineering applications Use of technical specifications" ③ GB/T 1447-2005 ③GB/T 1447 -2005 "fiber reinforced material tensile performance test methods". Methods" ③GB/T 1447-2005 "Tensile Property Test of Fiber Reinforced Materials ③GB/T 1447-2005 "Test Methods for Tensile Properties of Fiber Reinforced Plastic ④GB1448-2005 Test Method for Compression Performance of Fiber Reinforced Plastics ⑤ GB1449 2005 "Test Method for Flexural Property of Fiber Reinforced Plastics". Method for Flexural Property Test of Fiber Reinforced Plastics ⑤ GB1449 2005 "Test Method for Flexural Properties of Fiber Reinforced Plastics Test Methods for Longitudinal and Transverse Shear of Fiber Reinforced Plastics ASTM D5528-01(2007) Standard Test Method for Mode I Interlaminar Plastics ASTM D5528 -01(2007) Standard Test Method for Mode I Interlaminar Fracture Toughness of Unidirectional Fiber Reinforced Polymer Matrix Composites ⑦GB/T 1463- 2005 "Density and Relative Density of Fiber Reinforced Plastics". Density and Relative Density Test Methods of Fiber Reinforced Plastics ⑧GB/T 2577-2005 "Glass Fiber Reinforced Plastic Resin Content". Test Method for Resin Content of Glass Fiber Reinforced Plastics ⑨GB/T 3854-2005 Test Method for Bacall Hardness of Reinforced Plastics Test Method for Reinforced Plastic Bacall Hardness |
| Polyurethane Closed-cell core |
Water Absorption <3% Shear strength 20.10MPa Flat compressive strength 20.15MPa The flat compressive modulus of elasticity 26MPa |
①GB/T 8810 2005 Determination of Water Absorption of Rigid Foam Plastics ②GB/T 10007- 2008 "Rigid Foam Shear Strength Test Method". ①GB/T 8810 2005 "Determination of Water Absorption of Rigid Foam ③GB/T 1453-2005 "Test Method for Flat Compression Performance of Sandwich Structure or Core", and Test Method for Flat Compression Performance of Sandwich Structure or Core". |
| Composite Material Crash Barrier Overall performance of the block |
Color traffic red RAL3020 (RAL Industrial International Standard color card)Appearance size:+5cm Service life: 30 years |
